Planned Request Management

Table of contents

Introduction

Planned requests are used to automatically create service requests or change requests for work that needs to be done on a regular basis. They can be used to manage preventive maintenance or equipment maintenance for; IT, Facilities Management, Biomedical Engineering or other teams. The requests generated from a planned request are internal to the department and cannot be asked or viewed by the end users.

Examples:

  • Checking on the backups (IT)
  • Checking the heating system (Building facilities)
  • Preventive maintenance of a defibrillator (Biomedical)

A good knowledge of the Configuration module and the configuration of the Octopus Options and Reference data management will facilitate the understanding and configuration of the planned requests. If personalized assistance is required, please contact us and we will be happy to evaluate your needs and assist you in the implementation of this solution.

Basic Configuration

Planned requests can be configured in the Options and Reference data management, combined with specific configurations done directly in the Planned request module (detailed in the Planned Request Configuration section bellow).

Permissions

Specific permissions are required for the ones who will configure the planned requests. They can be granted from the Octopus' user file. There are two types:

  • General
    • Administer Octopus, to do the basic configuration from the Options and the Reference data management
  • Planned request:
    • Access the planned request module

    • Create a planned request

    • Delete a planned request

    • Modify a planned request

To control more efficiently the access levels of Octopus, the permissions to administer Octopus and to the planned requests can be given to two different Octopus users.

Options

From the Tools > Options  > 3 - Important general options menu.

  • In the Visible and required fields section, the Estimated effort field needs to be checked to make it mandatory when creating planned requests. Otherwise, the Planned effort breakdown chart cannot be visualized.
  • Default values, specify a site and a user. The values will be used in requests issued by a planned request when they are not found in the system.
Visual explanation




NOTE: When you activate the Estimated effort field, if you already have planned requests configured without an estimated effort, you will be notified to specify an effort so that the Planned effort breakdown chart correctly represents all the planned efforts.

Reference Data Management

Some of the information necessary to the planned request are configured from the Tools > Reference data management menu.


1. Change ⇒ Template

  • A planned request can be based on a change template. This template must already exist to be available when creating a planned request. Right click on Template to add a change or click on an existing change template to modify it.

2. CI ⇒ Types

  • The group / assignee responsible for the maintenance of a CI is identified in the Maintenance tab of the CI.
Visual explanation



NOTE:
The group assignment is recommended as opposed to assigning an individual to ensure that requests are still completed if the assignee is not available (vacation, absence) and to prevent from having to redo the configuration if the person changes functions.


3. Service request ⇒ Types ⇒ Planned request

  • A planned request can be based on a service request. The service request template must already exist to be available when creating a planned request. Right click on Service request to add a new type of request or click on an existing one to modify it. For more information on the configuration of service requests, please consult the Service Request Types wiki.

4. Planned requests ⇒ Categories

  • Used to group requests of similar type to facilitate sorting of the work to be done, or to analyze data in a report. Once the categories are created, they can be selected from a list when creating a planned request.

Planned Request Configuration

  • Go to File > Planned request management.
  • From the actions menu, select Create planned request to open the New planned request window.

Upper Section

Category

  • Select the applicable category from the list.
  • Remember that categories must first be created in the reference data management - See the Reference data management section.
Note : The use of this field is not mandatory.
  • Purpose:
    • In some teams their may be a large number of planned requests. Categorizing them will help to sort out the workload and/or analyze the data in reports.
  • Instructions.
    • Here are some examples:
      • IT: IT security, Critical equipment maintenance, Equipment capacity.

      • Building facilities: Maintenance of beds and levers, Maintenance of heating / air conditioning systems, Building Safety.

      • Biomedical engineering: Minor, Major, Mandatory.

    • The category for one or multiple requests can be modified from a list by clicking Modify category from the Actions menu.
    • Use the Category column in lists to sort or group the information by category.

Estimated effort

  • Specifies the estimated effort needed to complete this type of request (format hour:minute).
  • Purpose

    • To be able to compare the estimated or allocated time to the actual time required to complete the request.

    • Allows to view the planned requests in the Planned efforts breakdown graph.

  • Instructions:

    • Add the estimated time in the required format, for example 00:30, if the time to complete the request is estimated to 30 minutes.

    • The estimated effort will not appear directly in the request, but it is visible from a list. Add the Estimated effort column under the Planned request to a list to see the value. To compare with the actual effort, add the Total effort column.

What you need to know:
When a planned request does not contain any estimated effort, it cannot appear in the Planned efforts breakdown chart.

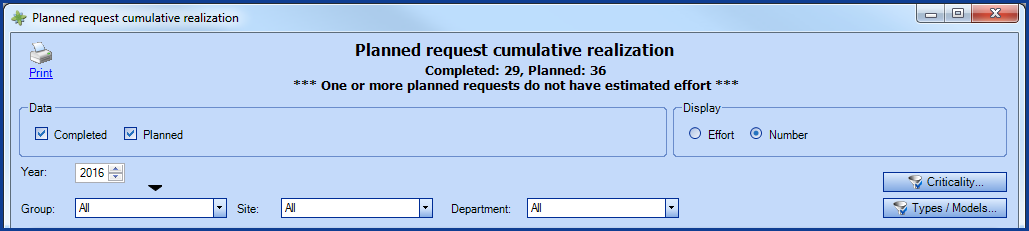

When this happens, the following message will appear under the title in the graph:
*** One or more planned request do not have estimated effort ***

Active

  • Checkbox that can activate or deactivate a planned request. Requests can also be activated or deactivated from the Actions menu.

Automatic activation/deactivation

  • The   button controls the date of automatic activation or deactivation of a request.
  • Purpose:

    • To trigger the activation or deactivation of a request at a specific date.

  • Instructions:

    • Use the date in combination with the appropriate status (see the visual explanation bellow).

    • Note that a request that has been deactivated will no longer appear in the Planned requests list; but it will be in the Inactive planned request one.

    • For an automatic activation, the next planned date will be bellow the field.


      Visual explanation


Schedule Tab

The Schedule tab is used to configure the time interval between requests generated from a planned request:

  • The Mode and the Details work in combination to determine when and how many times a request will be generated.
  • The Options indicate if the request will be created in advance or on the creation due date. When created in advance, the request will automatically be suspended with the reason Planned request created in advance. On the creation due date, it will activate itself and will appear in the list of new requests.

Once

The request will generate only once at the indicated date. (note: the date cannot be in the past.)

Once mode

Daily

The request will generate according to the number or recurrence indicated in days. For example, 1 day will generate a request every day, 2 days will generate the request every 2 days, etc.

Daily Mode

Weekly

The request will generate according to the number of recurrence indicated in weeks, on the specified day of the week. For example, recurrence 1 week - Thursday, will generate the request every Thursday. 3 weeks - Tuesday and Friday, will generate the request on Tuesday and Friday, every 3 weeks. For a request that needs to be created every 2 years, use 104 weeks.

Recurring - weekly mode



Selected weeks - weekly mode

The request is generated on the day or days of the specified week or weeks. For example, it is possible to generate the request on the Mondays of the 5, 10, 15, 20, etc. weeks.

What you need to know:

Weeks start on Sunday.

A year is 52 weeks and a few days and since January first does not always fall on a Sunday the week 53 and 1 of the next year can overlap.

This explains the existence of week 53.


It is possible to select specific weeks. The number and date of the week is visible to help in the selection.

Results of the weeks selected.

Monthly

The request will generate according to the month(s) selected, whether at fixed dates (the 15th of the selected month(s)) or on fixed days (the first Monday of the selected month(s)). It could give a combination like every second Saturday of March, July and October.

Monthly Mode with fixed dates



Monthly Mode with fixed days

Variable interval

The variable mode can use two triggers: after the last completion or after the creation of the last request. Combined with the number of days/months/weeks/years, we could have a request created 2 years after the completion of the last request OR 6 months after the last created request.

Variable interval Mode

Details of Generated Request Tab

Request type

Planned requests can be configured to create a service or change requests. A service request named General Planned Request is selected by default. It is possible to add other types of service request or change request templates from the reference data management. It needs to be done by an Octopus user with the permission to Administer Octopus. (See the Permissions section).

Subject

You can specify the subject for the requests to be created or let the system manage it. If the system takes care of it, it will compose the subject from the information contained in the planned request, like the CI, the template's name and the next planned date. Here's how it works:

  • If there is no CI.

    • Template name - [Next planned date].

  • If there is only one CI.

    • Template name - CI name - [Next planned date].

  • For more than one CI in a common request.

    • Template name - Multiple CI - [Next planned date].

  • For more than one CI each with its own request.

    • Template name - CI name - [Next planned date].

Assignment*

Planned request have several assignment methods:

  • As per CI (or CI type)
    • This option will use the first available choice in this order:
      1. The group/assignee configured in the "Maintenance" tab of the CI type
      2. If a group/assignee "Responsible" has been configured in the "Maintenance" tab of the CI, it will take precedence over the one configured in the CI type
      3. Finally if no responsible group/assignee are configured in the CI or CI Type, the system will assign the request to the Service Centre



  • As per SR type

    • This option will assign the request to the group/assignee defined in the SR type or to to Service Centre if none have been identified

  • Specific

    • With this option it is possible to specify exactly the group/assignee for the request.

Requester/User*

Two methods are available to select the requester/user:

  • Automatic
    • The system will pick the CI main contact as the requester/user of the request. If there is no main contact present, the system will use the default value configured in the Options
  • Specific
    • The requester/user for the request is selected

Site*

Two methods are available to select the site:

  • Automatic
    • The system will pick the CI site for the request. If no site is present in the CI, the system will use the site of the main contact. In the case where no value can be found in either of these places, the system will use the default value configured in the Options
  • Specific
    • The site for the request is selected

Procedure

The procedure can be automatically included in the planned request. This way it is possible to use the same SR type with different instructions.

Attached Files

One or more files can be added to the planned request if required.

*The examples mentioned above are in linked to the option A request for each CI.

If the planned request is in the Common request for all CIs, the selection method for the assignment, the requester/user and the site will be the first value available from the CIs. The selection technique must return a value if there is a consensus for all CIs.

For example, the site considered will be the one shared by all the CIs. If it is not the case, then it will be the site of the main contact if the same contact is shared by all CIs. If no consensus is found, then the default values configured in the options will be used.

Please note that the date format displayed in the subject is the same as the Octopus server date format, but it can be modified via a setting accessible by our support team. If you would like to have this setting modified, please contact us to send a request via our Web portal.

CIs Tab

CIs can be added to the requests generated from the planned request, from the CIs tab. Relating the CIs to the requests is important because it will make the interventions done on a CI visible from its file. Many options are available to offer a flexible solution to manage the planned requests:



  • No CI
    • It can happen that a request generated from a planned request will not be linked to a CI; in this case, leave the default value of No CI
NOTE:  For CI type and CI model only
When new CIs are added, they automatically inherit the planned requests configured by type or model. This is very practical and avoids forgetting CIs in preventive maintenance.
  • CI Type
    • Usually similar equipment will require similar types of maintenance. It is simpler in this case to create only one planned request for a CI type. It is possible to exclude one or more models of the CI type selected.

  • C Model
    • If a planned request is required only for one model of CI, the best method will be by CI model. If more than one model are concerned, then the CI type method would be best.

  • Custom CIs
    • It is possible to pick one or more specific CIs for a request. Use the advanced search button    to find the CIs using multiple criteria. For example, to find a type of equipment from a specific site, add search criteria in the General and Classification tabs.

  • From the results found by Octopus, you can use the regular Windows techniques to make your selection (CTRL+Click, SHIFT+Click, CTRL+A, Enter) to add the CIs to the planned request.


  • Number of CI per request.
    • In the bottom part of the window, the methods CI typeCI model and Custom CIs have two options:



If separate interventions are required or if parts are required, the best practice would be to have one CI per request.

Note that if the option for A request for each CI is selected, the Next planned date will remain empty, even if there is only one CI included in the request.

Tips on Planned Request
  • Distinguish between types of requests.
    • As it is possible to get regular types of requests as well as planned requests, to distinguished between the two types, add the Planned Request columns.
      If the request is from a user, the field will remain empty.

  • Find CIs without planned requests.
    • To find CIs that are not related to any planned requests, do a search from the CI module for the Number(Planned Request) field that is empty. This search can be saved as a list.



What you need to know:

Data under the CIs tab cannot be modified as long as there is an active request generated by a planned request.

If you need to modify the relationship between the CI and a planned request, make sure all SRs and changes generated by this planned request are completed first.



Visual Explanation

To find out if there is still an active request generated by a planned request, add the Request column to the list of planned requests.

Note tab

Specific information about the request can be added to the Note tab. Add the Note column under Planned Request to see the information, as shown in the illustration bellow:

History Tab

As in other modules, the History tab shows the changes done to the planned request from its creation, as shown in the illustration bellow:

If you have more than one Service Desk

Building Management is often managed around the physical sites and if you have defined your Service Desks according to the sites, the planned requests can automatically be assigned to the right group, as in the scenario bellow.  Follow the link to find out more about how to configure more than one Service Desk

A company has 6 elevators, three in Montreal and three in Chicoutimi. The Chicoutimi site is configured to use the Chicoutimi Team as their service desk. In a planned request associated to the Elevator CI, the assignment will be done according to the service desk, unless another group is mentioned in the CI or the SR type.

  • The #1, #2 and #3 elevators are associated to the Chicoutimi site.
  • The #4, #5 and #6 elevators are associated to the Montreal site.
  • In the CI file of elevator #6, it says that the maintenance group is Mechanical.

In our example, there is only one planned request for the Elevator CI and the option A request for each CI was selected. The SR used is the General Planned Request and this request type is not associated to any particular group. During the generation of the SRs the following results will be observed:

  1. If the assignment was As per CI (or CI type)
    • Requests for #1, #2 and #3 elevators will be sent to the Chicoutimi Team group.
    • Requests for #4 and #5 elevators will be sent to the Service Desk group.
    • The request for elevator #6 will be assigned to the Mechanical group.
  2. If the assignment was As per SR type
    • Requests for #1, #2 and #3 elevators will be sent to the Chicoutimi Team group.
    • Requests for #4, #5 and #6 elevators will be sent to the Service Desk group.
  3. If the assignment was Specific
    • All the requests will be sent to the selected group.
Visual Explanation

Example 1



Example 2




Example 3








Predefined Lists

Three lists are available by default for the planned requests management:

  • Planned requests:

    • Displays all activate planned requests.

  • Planned request items:

    • Lists all planned items related to the planned requests.

  • Inactive planned request:

    • Displays all deactivated planned requests.

This section explains in detail the two available lists in the favourites and how to get the most of the them.

Planned Request Lists

It is from this list that you will be able to create, consult and modify your planned requests.
When you first use this list, you will have the following columns:

Planned Request List
Column Description
Number Represents the unique identifier of the planned request
Category When used, the categories group planned requests of similar type to facilitate sorting and grouping
Template/ Type Indicates which SR type or change template the request will be created with
Period Details the planning mode used for the planned request
Last completion date Displays the date of the last completed request, if any
Next planned date Displays the date of the next planned request

Other columns can be very useful in this list.
We suggest the following, but others can be added depending on the needs.




Planned request list with additional columns
Column Description
Estimated effort Used to indicate the estimated effort for the work
CI selection mode Indicates the mode used in the planned request, either No CI, CI type, CI model or Custom CI
Note  Displays the content of the note for an item
Common request for all CIs When checked, indicates that all CIs will be in the same request




What you need to know:

The Next planned date will remain empty in the list of Planned requests if the option A request per CI has been selected.

This is normal if many CIs are linked to the planned request, but it is true as well if only one CI is linked. If you want to see the date, change the type to Common request for all CIs.

See bellow for an example. Image shows A request for each CI and image shows Common request for all CIs.



Visual explanation



Planned Request Items List

It is very important to understand how to use this list as it will become a useful tool to organize planned requests (or preventive maintenance (PM) as the department may call them).

Featured Items in this list represent active planned requests and their CIs. The number of items related to a same request may vary depending on the CI selection mode. Except for the No CI mode, otherwise there will be as many items in the list as there are CIs for the selected modes.

One of the more interesting features from this list is that CIs can be managed individually (deactivate a specific CI, change the next planned date, modify the last completion date, etc.).

Items in this list represent all the SR or change requests that will be created as per the instructions configured in the planned requests. The number of items related to a planned request depends on the CI selection mode.


Table with examples
CI selection mode Results
No CI

Only one item will appear in the list

Example
Planned request #1001
  • No CI
  • Seasonal maintenance

Result : 1 item in the list

CI type and
A request for each CI

As many items as there are CIs of this type (except if some models were excluded)

Example
Planned request #1002
  • CI type: Server
  • A request for each CI
  • 50 servers present in the environment

Result : 50 items in the list

CI type and
Common request for all CIs

As many items as there are CIs of this type (except if some models were excluded)

Example
Planned request #1003
  • CI type: Air conditioner
  • Excluded model: BA320
  • Common request for all CIs
  • 15 air conditioners correspond to the criteria above in the environment

Result : 15 items in the list

CI model and
A request for each CI

As many items as there are CIs of this model

Example
Planned request #1004
  • CI model: MOD-1234
  • A request for each CI
  • 12 CIs correspond to the criteria above in the environment

Result : 12 items in the list

CI model and
Common request for all CIs

As many items as there are CIs of this model

Example
Planned request #1005
  • CI model: MOD-1234
  • Common request for all CIs
  • 25 CIs correspond to the criteria above in the environment

Result : 25 items in the list

Custom CI and
A request for each CI

As many items in the list as there are CIs selected in the planned request

Example
Planned request #1006
  • Following CIs selected(equipment): CI1, CI2, CI3, CI4, CI5
  • A request for each CI

Result :  5 items in the list

Custom CI and
Common request for all CIs

As many items in the list as there are CIs selected in the planned request

Example
Planned request #1007
  • Following CIs selected(equipment): CI6, CI7, CI8, CI9, CI10, CI11, CI12
  • Common request for all CIs

Result : 7 items items in the list

When you first use this list, you will have the following columns:


Planned request items list
Column Description
Category When used, the categories group the planned requests of similar type to facilitate sorting and grouping
Period Details the planning mode used for the planned request
CI  Displays the name of the CI related to the planned request
Type  Displays the CI type related to the planned request
Criticality Indicates the criticality of the CI related to the planned request
Last completion date Displays the date of completion of the last SR or change request. If related to one or more CIs, this date will appear in their file
Request Displays the number of the opened request
Next planned date Displays the date of the next planned request
Active Indicator to show if the item on the list is active or not
Estimated effort When present, indicates the estimated effort for the work
Note  Displays the content of the note related to the item

Other columns can be very useful in this list.
We suggest the following, but others can be added depending on the needs.

List Planned request items with additional columns
Column Description
Number Represents the unique identifier of the planned request (this number can be used the group items of a common planned request)
Next planned date (month/year) Displays the next planned date in the month/year format making it easier to plan by sorting and grouping with this column

From the Planned request items list, double-clicking on an item will open its CI file as shown bellow.
Also, with a right click the following options are available: Open the planned request related to the CI, Open the CI.


Maintenance tab from a CI
Item Brief description
If the assignment of the planned request is As per CI (or CI type), the request will be assigned according to the group defined in this section
The replacement information like the Theoretical Lifetime or the Suggested Replacement Value is defined from the CI type and with the help of the Date of Purchase documented in the Cost tab of the CI
Section that shows if a specific supplier takes care of the maintenance of this CI and if a service contract is required
When a CI is associated to at least one planned request, it will appear in this section

It is possible to change the behavior of a planned request for a CI using the action buttons. The right column describes what each button does













Planned request items list

Action Menu

The action menu can vary according to the list selected.

Common actions

  • Create planned request.
    • To create a new planned request. Can be used directly in the Configurations module, after selecting one of more CI.
  • Activate.
    • From the Inactive planned request list.
      • To reactivate an inactive planned request.
    • From the Planned request items list.
      • To reactivate the creation of planned requests for one CI.
  • Deactivate.
    • From the Planned request list.
      • To deactivate a planned request.
    • From the Planned request items list.
      • To deactivate the creation of planned requests for one CI.
  • Planned effort breakdown.
    • Displays the distribution of the planned efforts.
  • Planned request cumulative realization.
    • Allows to compare the amount of realised requests compared to what has been planned.

Action specific to the Planned request list

  • Modify category.
    • To select or modify the category for one or more planned request at once.

Action specific to the Planned request items list

The actions below can be performed on a multiple selection (aside from the Open action)

  • Open planned request.
    • Opens the planned request related to the item on the list. In this list, double-clicking an item will open the CI, not the planned request.
  • Modify note.
    • To modify the note for the selected item from the list.
  • Modify next planned date.
    • To modify the date when the next request will be created for an item (not available if a request is already open for this item or if the item is deactivated).
  • Generate request immediately.
    • To generate the request now (not available if a request is already open for this item).
  • Modify last completion date.
    • To change the completion date of the last request (available only for planned request with the variable interval mode combined with the after completion option).

Organizing the Planned Request Items List

Before you start

This list will help organize the work that needs to be done. Certain steps are important, especially at the beginning, to ensure that the requests will be created at the right time for the correct CIs (equipment).
Here are a few things that need to be checked before proceeding to the planning stage.

  • Modify the next planned date (for one or more CIs).
    • When a planned request is configured by CI model or type, all the requests will be created on the same date for those CIs. This step is important because it will help with getting the requests created at the right moment.
  • Modify the last completion date (for one or more CIs).

    • If the date of the last completion is known and the planning is based on the x time after the last completion parameter, this step is important, because it will enable the system to create the requests at the right moment. Note that the last completion date cannot be changed once a request has been created and resolved for this planned request.

  • Deactivation of the execution for items (due to lack of time, manpower or because the CI is obsolete).

    • With planned request based on CI type or model, new CIs of said type or model will automatically inherit the configured planning. However, there may be cases where this should not apply for all CIs. This is why a review of the items in the list must be done to confirm that all the CIs present in the list require the related planned request.

  • Add a category.

    • The category field is useful to group and show in a single glance, items from the same category.

Planning

Once a review of the planned request items has been done, the list can then be configured to fit the needs.

Bellow are different scenarios using lists for 3 types of teams; the number of available columns and searches offer a multitude of possibilities.

The IT examples are aimed at the Information technology teams, the BME examples are aimed at Biomedical engineering teams (or related to medical equipment) and the BF represents the building facilities department, technical services, etc.



Group by Details
Category Since the category is configurable, it can be very useful to group planned request. In the following examples, the categories will be different from one team to the next because their needs are different
IT Example



BME Example



BF Example
Next planned date (month/year)  The Next planned date (month/year) column allows to group the planned requests to come by month and year no matter the day
Example
  1. The list group by the Next planned date (month/year) column
  2. When the next planned date is empty, it means a request is already active for this CI or the automatic creation for this planned request is deactivated. It is why the Request and Active columns can be interesting in this type of view

Site or
Site / Sub-site
When maintenances are on different sites or if they are on different floors, it could be good to group by this column. It is then possible to group or sort again with another column - the next planned date (month/year) for example
BME Example
  1. The list is grouped by 2 columns, the Site and then the Next planned date (month/year)
  2. When the next planned date is empty, it means a request is already active for this CI or the automatic creation for this planned request is deactivated. It is why the Request and Active columns can be interesting in this type of view



BF Example
  1. In this example, the column Site / Sub-site was used to group because the floor is important in this view
  2. Then the column Next planned date (month/year) was used to sort to facilitate the planning from this list

By period or by group  To have an idea of the workload for the resources by group coming up, group by the following 2 columns: Next planned date (month/year) and Maintenance group
BME Example
  1. This list is grouped by the Next planned date (month/year) column and then by the Maintenance group column. This way, each month the workload by group can be seen and planned accordingly
  2. When the next planned date is empty, it means a request is already active for this CI or the automatic creation for this planned request is deactivated. It is why the Request and Active columns can be interesting in this type of view
  3. The Estimated effort column can be very useful for this type of planning



BF Example
  1. This list is grouped by the Next planned date (month/year)column and then by the Maintenance group column. This way, each month the workload by group can be seen and planned accordingly
  2. The Estimated effort column can be very useful for this type of planning

CI type It may be useful to group the planned requests by CI type, when you validate them
IT Example



BME Example



BF Example

Planned efforts breakdown

The planned efforts breakdown presents the whole year, broken down in weeks. The graph is only available from the Planned request management (from the File menu) by clicking the Planned efforts breakdown action.

The sub-title of the graph shows the total efforts for each of the selected series (Completed (planned), Completed, Not completed or Planned). In the case where some of the planned requests do not contain estimated efforts, a message will indicate it under the title of the graph as planned request cannot be shown if they do not have estimated efforts.




What you need to know:

The graph can be opened in a side window if you use CTRL + Planned efforts breakdown action.

Data

Definitions of series represented by the generated report:

  • Completed (planned)
    • Represents the planned efforts of the resolved, closed or cancelled requests.
    • Considers the planned dates of the requests.
    • Considers the estimated efforts of the requests.
  • Completed
    • Represents the closed requests excluding the cancelled ones.

    • Considers the resolution dates of the requests.

    • Considers the internal efforts of the requests.

  • Not completed
    • Represents the opened requests.

    • Considers the open dates of the requests

    • Exception: Considers the reactivation date of the Suspended requests with the Planned request created in advance reasons.

    • Considers the estimated efforts that come from the planned requests.

  • Planned
    • Represents the planned request items.

    • Considers the next planned dates as well as the next projected dates.

      • Planned: Next planned dates as specified in the planned request items

      • Projected: Next projected dates following the next planned dates according to the planning modes of the planned requests

    • Considers the estimated efforts of the planned requests.

    • The projected planned requests items displayed following the drilling of the Planned series, these cannot be modified.

    • Note: In the case of a planned request with a variable interval after completion with an opened request, the next projected dates are determined from the last planned date and calculated in fixed intervals.

Filter

  1. Data: Shows one or more options related to the previously explained series, Completed (planned)Completed, Not completed or Planned.
  2. Year: Allows to select the year of the data to display.
  3. Group and assignee: Allows the selection of the planned efforts by group or assignee.
  4. Site: Allows the selection of the planned efforts for a specific site or sub-site.
  5. Department: Allows the selection of the planned efforts for a specific department or sub-department.
  6. CI: The CI filter allows to use the advanced search by CI type or name, or any other CI criteria. Click the magnifying glass to open the CIs advanced search window and add your criteria.
  7. Category: Allows to filter planned request by category. To configure the requests and find out more about their benefit, see the Category section.
  8. Types / Models: Allows to filter the chart by the CI type manufacturers and models.

Contextual menu

  • Display values: Shows the effort value per week. To show the total completed or planned efforts, right click on one of the bars and select Display values
  • Display data: Allows you to drill data for a particular week. To view the data for a particular week, right click the bar of the desired week in the chart and select Display Data. You can also double click on the week to view the result of the data.
  • Display horizontal lines: Allows to see (by default) or remove the horizontal lines in the graph.

Planned request cumulative realization

The Planned request cumulative realisation graph allows to compare by Effort; the actual effort in relation to the planned effort, or in terms of the Number of completed requests versus the number of planned ones. This graph can be accessed from the Planned request management module (from the File menu) by clicking the Planned request cumulative realisation.

The sub-title of the graph shows the total efforts for each of the selected series, either Completed or Planned. In the case where some of the planned requests do not contain estimated efforts, a message will indicate it under the title of the graph as planned request cannot be shown if they do not have estimated efforts.

Visual explanation

Planned request cumulative realisation - view by Effort



Planned request cumulative realisation - view by Number



What you need to know:

The graph can be opened in a side window if you use CTRL + the Planned request cumulative realisation action.


Data

Definitions of series represented by the generated report:

View = Effort

  • Planned
    • Represents the Estimated effort configured in the planned requests.
    • Combines the estimated efforts of planned request items (planned and projected) as well as the ones from requests that are open, resolved/closed or cancelled and were generated by a planned request.
    • Considers the next planned date as well as the next projected ones.
  • Completed
    • Represents closed requests excluding the cancelled ones.

    • Considers the resolution dates of the requests.
    • Considers the internal efforts of the requests.

View = Number

  • Planned
    • Combines the number of planned request items (planned and projected) as well as the requests that are open, resolved/closed or cancelled and were generated by a planned request.

    • Considers the planned date of the planned items and requests.
  • Completed
    • Represents closed requests excluding the cancelled ones.
    • Considers the resolution dates of the requests.

Filter

  1. Data: Shows one or more options related to the previously explained series, Completed and Planned.
  2. View: Data is displayed in the graph by Effort or Number (number of requests).
  3. Period: Represents a whole year or a specific period (with start and end date) when clicking on the black arrow.
  4. Group: Shows the cumulative data for the planned requests for a specific group.
  5. Site: Shows the cumulative data for the planned requests for a specific site or sub-site.
  6. Department: Shows the cumulative data for the planned requests for a specific department or sub-department.
  7. CI :
    • Criticality: Filters the graph by CI criticality.
    • Types / Models: Filters the graph by manufacturer / models of the CI types.

Contextual menu

  • Display values: Shows the effort or number of requests according to the selected display. To show the totals in the graph, right click on one of the bars and select Display values
  • Display data: Allows you to drill data for a particular month. To view the data for a particular month, right click the bar of the desired month in the chart and select Display Data. You can also double click on the month to view the result of the data.
  • Display horizontal lines: Allows to see (by default) or remove the horizontal lines in the graph.
What you need to know:

Since the data from the graph represents the cumulative of the planned requests, when drilling, all the data from the beginning of the selected period until the selected month will be displayed in the list. To help with the display and group information, two new fields have been added Resolution Date (month/year) and Planned Date (month/year)

Request types by month

The following types of requests can be selected in the report :

  • Incidents.
  • Service requests.
  • Planned requests.
  • Changes.
  • Problems.
  • Events.

The data will be shown according to the display type selected:

  • Effort.
  • Number.

For all the details on this report, see the Request types by month section of the Reports and Statistics Module Wiki.

Visual explanation

Tricks

In order to exploit the use of lists to manage the planned requests, it is recommended to read the following article: List Customization.

However, here are a few quick tricks to help maximize the use of lists.

Adding columns

  • To add one or more column, all you need is to right click on the list to modify and select Select a column from the menu.

  • To pick the required column place a checkmark in front of the field name or uncheck to remove, then press OK.

  • To facilitate the search of a column, use the filter field.



Note that the required field may be present in more than one group. It is important to select the right one.

Group by

To quickly group using one or more columns, use the top section provided for this purpose.

  • From the list that you want to group by, right click and select Display > Display groups header from the menu.

  • An additional section will appear at the above the list:

  • Then click and slide the column with which you want to group by.

Open in Excel

Refer to this article to find out how.

X
Help us improve our articles








Help us improve our articles
